Online Ups 10 Kva Price

75000 INR/Number

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Online Ups 10 Kva Price Price And Quantity

Price 75000 INR/Number
Price Range 74000.00 - 75700.00 INR/Number
Minimum Order Quantity 1 Number

Online Ups 10 Kva Price Trade Information

Payment Terms Cash Against Delivery (CAD) Cash on Delivery (COD) Cash Advance (CA) Cash in Advance (CID) Cheque
Sample Policy If order is confirmed we will reimburse the sample cost
Main Export Market(s) Asia

Product Description

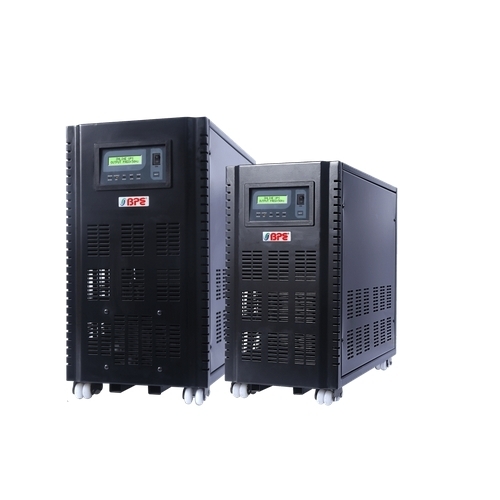

BPE ONLINE UPS 10KVA, 192VOLT ( PB1110L16)

Brand	BPE
Capacity	10 KVA
Protection	Battery Low Voltage, Overload, Short Circuit and over/voltage
Phase	Single Phase
Frequency	50 Hz +- 0.1%
Operating Temperature	045 Degree C
Efficiency	Up to 93%
Humidity	095% RH Non-condersing
Output Voltage	220 V / 230 V / 240 V +- 1% (L+N+PE)
Model Number	PB1110L16
Alarm	Battery Low Voltage, Abnormal Power Supply, UPS Failure, Overload
Weight	76 Kg
Storage Temperature	-10 Degree C 55 Degree C
Noise	Low Audible Noise Level
Waveform	Pure Sine Wave
Overload	less than or equal to 125% for 10 Min, greater than or equal to 125% for 60 Sec, 150% for 1 Sec.
Input Voltage Range	160 V280 V AC, Single Phase (3 Wire, L+N+PE)
Frequency Range	50 Hz +- 10%
Output Power Factor	0.8 (Standard), 0.9 (Optional)
THDv	less than 3% on Linear Load
Isolation Transformer	Inbuilt Isolation Transformer
Battery Voltage	192 V DC (168 V and 180 V DC Optional)
Battery Charging Current Maximum	1 A 10 A Standard (High Rating Optional)
Battery Charging Time	less than 10 Hrs. to 95%
LCD Display	Input and Output Voltage, Input and Output Frequency, Load & Battery %
LED Display	Mains, AC Mode, DC Mode, Low Battery and overload
Altitude	Less Than 1500 M
Quality Standards	ISO 9000, ISO 14001, OHSAS 18001, ISO 27001, BIS, RoHS
Safety	IEC/EN62040-1
EMC and Protection	IEC/EN62040-2; IEC/EN62040-3, Complying to CE
Dimensions W x D x H	280 x 615 x 685 mm
Optional Communication Interface	SNMP / ModBus / Dry Contact / USB / RS-485 / RS-232
Monitoring Software	Net Agent Utility v5.8 / View Power / UPSilon 2000 / Muser 4000

Features :

True Online Double Conversion Design
Output Isolation Transformer
Wide Input Voltage Range
User Friendly Digital LCD Display
High Crest Factor Circuit Design
Advance Battery Management
Inbuilt High-Rated Charger enable Battery Backup up to 2-10 Hrs.
IGBT based charger for smart battery management & improve input powerfactor
Wide input Frequency Range ensure all types of fuel generators connected work stable
Optimization of high performance of battery
Advanced floating switching and charging technology maximized the activation of the battery, thus saves the charging time and extends the battery life
Battery cold start function
The UPS can be start directly by battery group when no utility access in which meets the emergency needs of user
Comprehensive and reliable protection
Self-diagnosis function before start-up
The multi-protections such as overload, short circuit, over temperature. battery under voltage, battery over voltage and ensure the system stability and reliability
Solar compatibility (optional)
Static bypass (optional)
